Woven Upholstery Textile Printing Machine Automatic Rotary Roll Knitted Blanket

Name: Woven Upholstery Textile Printing Machine Automatic Rotary Roll Knitted Blanket
Brand: ZYTT
Price: 330 USD

Quality Woven Upholstery Textile Printing Machine Automatic Rotary Roll Knitted Blanket for sale

Place of Origin : Jiangsu, China

Brand Name : ZYTT

Certification : CE

Packaging Details : Wrapped with plastic film and packed in wooden cases

Supply Ability : 20 Set/Sets per Month

Price : $330,000.00/pieces 1-4 pieces

MOQ : 1 set

Delivery Time : 30 days

Plate Type : Screen Printer

Applicable Industries : Garment Shops, Manufacturing Plant

Condition : New

Usage : Cloths Printer, blanket printer

Automatic Grade : Automatic

Color & Page : Multicolor

Voltage : 380V

Dimensions(L*W*H) : 36m*5m*4m

Weight : 30000 KG

Max. Print Area : repeat size :1018mm

Warranty : 1 Year

After-sales Service Provided : Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Key Selling Points : Automatic

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Motor, Gear, PLC

Application : Woven, knitted, flannelette, blanket

Function : Automatic

Key words : rotary printing machine

Heating Method : oil,gas,steam

standard colors : 8 12 16

repeat size(mm) : 1018mm

printing type : magnetic type squeegee type cmbination

After Warranty Service : Video technical support

Machine type : continue rotary screen printer

normal width : 320cm

Port : shanghai

Contact Now

Automatic rotary printing machine for roll Knitted and woven fabric Blanket

Brief Introduction

The variety has wide printability, with a gram weight range of 60-600g / ㎡, woven, knitted, flannelette and blanket The latest tenth generation of automatic flower alignment system, the lifting speed does not run flowers The overall modular design, scraper and magnetic rod are combined arbitrarily, and the process arrangement is flexible

Our rotary screen printing machines are well suited to the mass production needs of textile factories. There are not only manual rotary screen printing machine, but also simple rotary screen printing machine and automatic rotary screen printing machine. At the same time, four-color rotary screen printing machine is our best quality products, we will provide more color services according to customer needs.

Machine Specification & Advantages

Speed			100 M/Min
Scraping mode			magnetic type+scraper arbitrary combination
power			165KW
repeat size			1018mm
Transmission mode			the guide belt adopts German Lenz servo deceleration integrated transmission
Drying heat source			natural gas / steam / heat transfer oil
Power supply			AC3-380V±10﹪,50Hz
Number of printing sets			8 / 12 / 16 sets

Advantage 1

Open chuck structure, convenient and fast network change. Special printing magnetic table, magnetic rod pressure stepless adjustment, uniform coloring and strong permeability. The printing unit is electrically lifted and lowered as a whole, and the friction plate is changed, which is easy to clean and maintain. The guide belt drive has no deviation correction roller, and the unique design ensures smooth operation without deviation.

Advantage 2

German integrated guide belt drive motor reducer, high precision, maintenance free and long service life. Stainless steel guide belt washing, high cleaning rate and water saving. Multifunctional infiltration roller, automatic cleaning, uniform pressure, meeting various flower return needs.

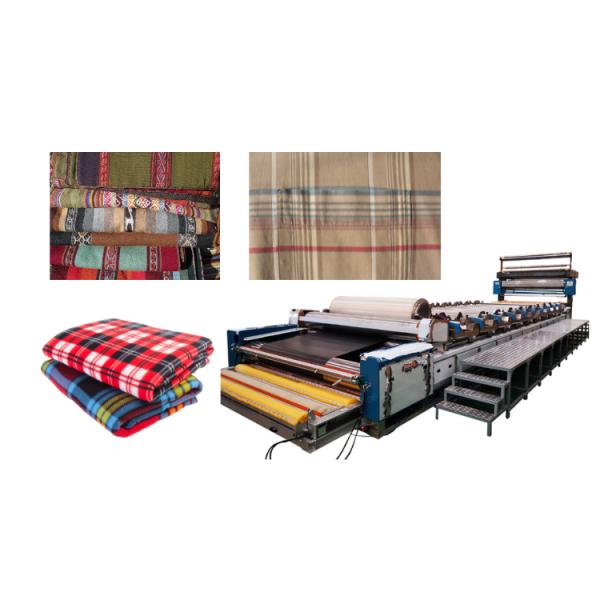

Machine Display
